Click Here for Complete Trailer Tow Guide for 2009 Ford F-Series Trucks and SUV's.
2009 F-150 KEY FEATURES
• Four Powerful and Fuel Efficient Engine Choices:
– 4.6L 2V V8 with 248 hp and 294 lbs.-ft. of torque
– 4.6L 3V V8 with 292 hp and 320 lbs.-ft. of torque
– 5.4L 3V V8 gas engine with 310 hp and 365 lbs.-ft. of torque
– 5.4L 3V V8 Flex Fuel (E85) with 320 hp and 390 lbs.-ft. of torque
• New fully boxed frame with hydroformed high strength steel
welded through-rail cross members for superior handling control
and responsiveness – strongest in its class
• Coil-over-shock front suspension, outboard rear shocks
and rack-and-pinion steering for outstanding steering response
and performance
• 4-wheel vented disc brakes with standard 4-wheel Anti-lock
Brake System (ABS) and electronic brake force distribution for
responsive, confident stops and exceptional control under hard braking
• Three cab styles – Regular, SuperCab and SuperCrew
• Deep cargo boxes offering largest capacity in their class,
plus box side steps and tailgate step
Metric Conversion – To obtain information in kilograms,
multiply pounds by .45.
2009 F-Series Engine Specs:
• 5.4L Triton®
V8 – 300 hp & 365 lbs.-ft. torque
• 6.8L Triton V10 – 362 hp & 457 lbs.-ft. torque
(Best-in-class gas horsepower and torque)
• 6.4L Power Stroke®
V8 Turbo Diesel –
350 hp & 650 lbs.-ft. torque
2009 Ford Escape Towing Capacity and Specs:
• Available Duratec 30-3.0L V6 Engine
generates a sporty 240 horsepower,
223 lbs.-ft. torque (available on XLT
and Limited)
• Electric Power Assisted Steering
system adapts to changing road
conditions and vehicle speed, allowing
for more confident steering and handling
• 4-wheel independent suspension helps
maximize agility and control
• 3,500-lb. towing capability with V6
engine when properly equipped
• Capable of flat/neutral tow
• Seating capacity for up to five adults
• Available Intelligent 4WD System monitors
traction 200 times per second and adjusts
torque distribution as needed to give
maximum traction
• New available voice-activated Navigation
2009 Ford Explorer Towing Capacity and Specs:
• Standard 210-hp 4.0L SOHC V6 Engine
with 5-speed automatic transmission
• Optional 292-hp 4.6L 3-valve V8 Engine
with 6-speed automatic transmission
• Tows trailers up to 7,285 lbs. when
properly equipped
• Independent rear suspension tackles
rough terrain and uneven road surfaces
with ease
• Standard AdvanceTrac®
with RSC®
(Roll Stability Control™
)
(a)
• Standard Safety Canopy®
System with
side-curtain airbags and rollover sensor
• Versatile, comfortable interior includes
fold-flat 2nd- and available 3rd-row
seats, optional 50/50 split 3rd-row and
available PowerFold™
3rd-row
• 5-Star ratings in NHTSA Frontal and
Side-Impact crash tests
(b)
2009 Ford Expedition Towing Capacity and Specs:
• Proven 5.4L Triton®
V8 generating
310hp/365 lbs.-ft. of torque, mated to
segment-first 6-speed automatic
transmission
• Class-leading 9,200-lbs. trailer towing
capacity (9,000 lbs. for Expedition EL)
• First-in-class independent rear
suspension features refined, second-
generation architecture for controlling
and tuning ride and handling
• Standard 4-wheel disc Anti-lock
Brake System (ABS)
• Standard AdvanceTrac®
with RSC®
(Roll Stability Control™
)
(a)
• First-in-class, available PowerFold™
3rd-row seat and 2nd-row CenterSlide™
feature for improved cargo area utility
• Increased fuel economy - Unsurpassed
in the Large Utility segment
(1)
2009 Ford Flex Towing Capacity and Specs:
• Three rows of innovative seating for up
to 7 people, including limo-like leg room
in the 2nd row
• Flat load surface from front to back with
fold-flat front passenger seat
• Fold-flat 2nd-row seat and fold-in-floor
3rd-row seat
• Three well-equipped trim levels: SE,
SEL and Limited
• 4,500-lb. towing cap
2009 Ford Sport Trac Towing Capacity and Specs:
• Choice of 4x2 or 4x4 models
(also AWD with Adrenalin package)
• Standard 210-hp 4.0L SOHC V6 engine
with 5-speed automatic transmission
• Optional 292-hp 4.6L 3-valve V8 engine
with 6-speed automatic transmission
• Can be equipped to tow trailers up to
7,160 lbs.
• Standard AdvanceTrac®
with RSC®
(Roll Stability Control™
)
(a)
• Fully boxed frame and 4-wheel
independent suspension to help deliver
a notably quiet ride and agile,
responsive handling
• Dent-proof, scratch-resistant composite
cargo area holds up to 37.5 cu. ft.
of cargo
• Earned 5-Star ratings in NHTSA Frontal
and Side-Impact crash tests
(b)
2009 Ford Edge Towing Capacity and Specs:
• Can be equipped to tow trailers up to
3,500 lbs.
• Fully independent multi-link suspension
• Standard AdvanceTrac®
with RSC®
(Roll Stability Control™
)
(a)
• Standard 4-wheel disc Anti-lock Brake
System (ABS)
• Available panoramic Vista Roof™
Required and Recommended Trailer Towing Equipment:
E-Series Vans & Wagons
• For Trailers Over 5,000 Pounds – Class II/III/IV Trailer Tow Prep Package.
Escape
• For Trailers Over 1,500 Pounds – 3.0L V6 Engine.
Edge
• For Trailers Over 2,000 Pounds – Class II Trailer Tow Prep Package.
Explorer and Sport Trac
• For Trailers Over 3,500 Pounds – Class III/IV Trailer Tow Prep Package.
Expedition
• For Trailers Over 6,000 Pounds – Heavy Duty Trailer Tow Package.
Flex
• For Trailers Over 2,000 Pounds – Class III Trailer Tow Prep Package.
F-150
• For Trailers Over 5,000 Pounds – Trailer Tow Package or Heavy Duty
Payload Package (requires Max Trailer Tow Package).
F-350 Pickup
• For 26,000-pound GCWR – TowBoss Package.
F-450 Pickup
• For 33,000-pound GCWR – High Capacity Trailer Tow Package.
F-450/F-550 Chassis Cab
• For 33,000-pound GCWR on F-550 with Automatic Transmission;
30,000-pound GCWR on F-450 with Automatic Transmission; and
28,000-pound GCWR on F-450/F-550 with Manual Transmission –
High Capacity Trailer Tow Package.
Click Here for Complete Trailer Tow Guide for 2009 Ford F-Series Trucks and SUV's.
Saturday, September 29, 2012
Thursday, September 27, 2012
2011 - 2012 - 2013 Ford F-150 Trailer Towing Guide
Here is the latest Trailer Tow Guide from Ford for the latest F-150 model from 2011 to 2013. Keep in mind, as gearing changes, so does capacity. You can see more information HERE.
For a better view you can click the above grid which will open the image in a new window. Right click the image in the new window and choose print.
-TW
For a better view you can click the above grid which will open the image in a new window. Right click the image in the new window and choose print.
-TW

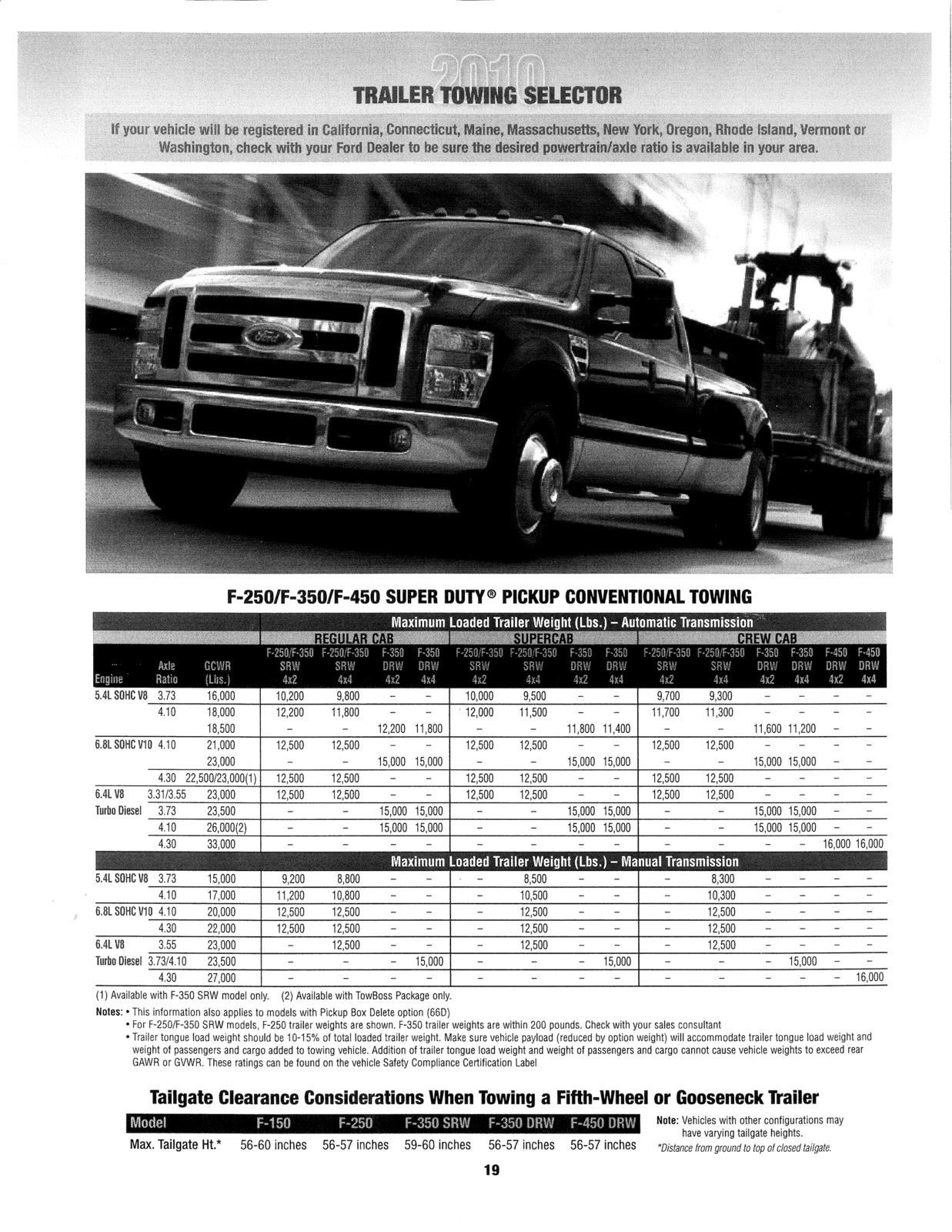

2010 Ford Super Duty Pickup Towing Guide
Here is the towing guide for the 2010 Ford Super Duty F-250/F-350/F-450 Pickup Trucks.
Conventional Towing:
Fifth-Wheel Towing:
Click an image which will open the picture by itself; then right click and choose print for better visibility.
-TW
Conventional Towing:
Fifth-Wheel Towing:
Click an image which will open the picture by itself; then right click and choose print for better visibility.
-TW
2010 Ford F-150 Trailer Towing Guide
Here at Ed Koehn one of the most frequent questions we receive is "Can the F-150 for the Super Duty I'm interested in pull my trailer or fifth-wheel that weighs "x" amount of pounds?" I thought I would put the information in an easily accessible place, like here on our blog. These trailer tow guides are provided by Ford, and I categorize them by engine and year range of those engines. Towing guides for other Ford trucks will be added shortly.
This is the F-150 Pickup Conventional and Fifth-Wheel Towing Guide that covers the model years 2004 to 2010.
This is the F-150 Pickup Conventional and Fifth-Wheel Towing Guide that covers the model years 2004 to 2010.
If you can't read the information, click the image, then you can right click to print it out so it can be more easily read.
-TW
